55 mmTechnical system data · reviewed 08/2026
Schüco · aluminum windows
AWS 75 PD.SI
Maximum transparency with minimal sightlines
Panorama Design Super Insulated combines an especially slim frame image with a flush interior appearance and strong thermal performance. Harmonized fixed and opening elements, concealed drainage and tight profile radii create a clear architectural language.
- System-specific performance data
- Visible revision status
- For architects and specifiers
Profile section
Explore functional zones
01
Profile assembly

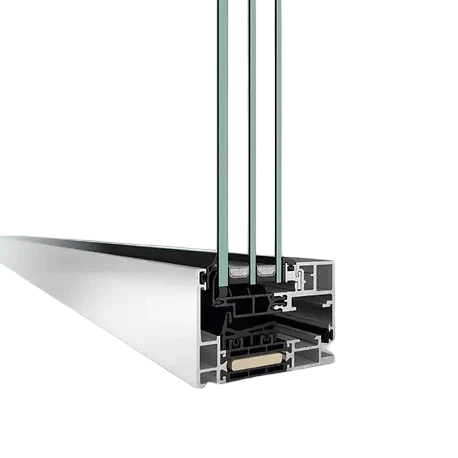

Published Uf value 1.70 W/(m²K)Select the three markers to classify the profile assembly, glazing zone, seals and drainage.
01 · System performance
Published data in a transparent technical structure.
Every value remains assigned to its technical category, so thermal performance, dimensions, security, comfort and glazing can be reviewed without mixed marketing claims.
System data sheet
Schüco AWS 75 PD.SI
Revision 08/2026
| Property | System value | Category |
|---|---|---|
| Insulation & Glazing | ||
| Uf value, frame | as low as 1.7 W/(m²·K) | Insulation & Glazing |
| Ug value, glazing | as low as 0.5 W/(m²·K) | Insulation & Glazing |
| Glass/panel thickness | 26–50 mm | Insulation & Glazing |
| Glass/panel thickness max. | 50 mm | Insulation & Glazing |
| Glazing construction | Triple glazing | Insulation & Glazing |
| Sealing planes | 3 | Insulation & Glazing |
| Comfort & Building physics | ||
| Sound insulation RwP max. | 46 dB | Comfort & Building physics |
| Air permeability | Class 4 | Comfort & Building physics |
| Watertightness | Class 9A | Comfort & Building physics |
| Wind load resistance | Class C5/B5 | Comfort & Building physics |
| Mechanical strength | Class 4 | Comfort & Building physics |
| Operational durability | Class 3 | Comfort & Building physics |
| Security | ||
| Burglary resistance | to RC 2 | Security |
| Safety glazing | Yes | Security |
| Dimensions & Weights | ||
| Sash height min.–max. | 540–2500 mm | Dimensions & Weights |
| Sash height max. | 2500 mm | Dimensions & Weights |
| Sash width min.–max. | 470–1450 mm | Dimensions & Weights |
| Sash width max. | 1450 mm | Dimensions & Weights |
| Sash weight max. | 160 kg | Dimensions & Weights |
| Overall frame depth | 85 mm | Dimensions & Weights |
| Sash/frame profile depth | 85 mm | Dimensions & Weights |
| Sightlines | ||
| Minimum sightline | 55 mm | Sightlines |
| Outer-frame sightline | 55 mm | Sightlines |
| Sash sightline | 0 mm | Sightlines |
| Mullion sightline | 70–102 mm | Sightlines |
| Maximum mullion sightline | 102 mm | Sightlines |
| Opening Types & Hardware | ||
| Manual, inward-opening | tilt-and-turn, side-hung and tilt-only | Opening Types & Hardware |
| Opening angle | 90° | Opening Types & Hardware |
| Concealed hardware system | Yes | Opening Types & Hardware |
| Construction & Certification | ||
| Profile shear bond | Yes | Construction & Certification |
| Finishes | Powder coating, anodizing or wet paint | Construction & Certification |
| CE marking | Yes | Construction & Certification |
| Color-independent performance | Yes | Construction & Certification |
| Product highlights | ||
| Minimal sash sightline | Narrow internal and external views maximize transparency. | Product highlights |
| Rosetteless handle connection | The Schüco design handle supports the reduced panoramic design language. | Product highlights |
| Flush-frame appearance | Surrounding shadow joints create a calm and uniform interior view. | Product highlights |
| Planning benefits | ||
| Panorama Design | Maximize transparency through minimized profile sightlines. | Planning benefits |
| Design profile geometry | Internal flush surface through a circumferential shadow joint. | Planning benefits |
| Handle design | Rosetteless handle connection with Schüco design handle. | Planning benefits |
| Application diversity | It can be used as a perforated window, ribbon window and facade insert element in Schüco mullion-transom curtain walls. | Planning benefits |
| Building interfaces | Optimized planning options with hidden drainage. | Planning benefits |
Values are taken from the system-specific data already maintained on this website. The binding result is produced from the actual unit configuration.
02 · Profile construction
From profile section to verified project planning.
Profiles, glazing, seals and hardware are treated as one system. This separates published values from the items that require project-specific verification.
System platform
85 mm frame depth or profile-dependent construction.
Planning: frame, sash, mullion and meeting stileGlazing
Published range: 26–50 mm.
Planning: build-up, weight, size and spacerSeals and drainage
Air: Class 4 · Water: Class 9A.
Planning: exposure and drainageHardware and security
Burglary resistance: to RC 2.
Planning: opening type, weight and tested assembly03 · Interactive tool
Estimate the whole-window U-factor with visible inputs and formula.
The calculator uses the published Uf input for the selected system, the glazing Ug value, the unit geometry and the spacer Ψ value.
Preliminary whole-window U-factorSchüco AWS 75 PD.SI
–W/(m²K)
- Window area Aw
- –
- Frame area Af
- –
- Glass area Ag
- –
- Glass-edge length lg
- –
Formula and calculation
Uw = (Af × Uf + Ag × Ug + lg × Ψg) ÷ Aw
Preliminary planning value. Mullions, transoms, divided lites, special geometry, actual profile combinations and applicable project standards must be included in the binding calculation.
04 · Planning resources
CAD, sections and specifications in one logical area.
Existing resources link directly to the relevant content. CAD details that are not yet public can be requested with the selected system already identified.
PDF
System data
Technical data overview
All currently stored performance values
Current data status · 08/2026PDF
Downloads
Product brochures and documents
Available manufacturer resources
Website document libraryCAD
DWG / DXF
Request a CAD section
Coordinate the appropriate configuration and revision
System preselectedTXT
Specification
Request specification text
System-specific text with project parameters
For architects and specifiersNo resources match this filter.
05 · Planning knowledge
Answers organized around real specification questions.
Frequently asked questions remain readable on the page and are also provided as structured FAQ data.
Which values are binding for AWS 75 PD.SI?
Only the values of the specifically engineered and verified unit configuration are binding, including profiles, size, opening type, glazing, hardware, anchoring and installation interface.
Which glazing can be used?
The published system range is 26–50 mm. A specific glass build-up also depends on size, weight, sash dimensions, hardware and structural verification.
Is to RC 2 automatically included?
No. A resistance class only applies to the tested assembly of profiles, hardware, glazing, anchoring and installation. The required class must be specified for the project.
How is the binding whole-window U-factor determined?
From the frame share, Uf value of the actual profile combination, glazing Ug value, glass-edge length, spacer Ψ value and, where applicable, mullions, transoms and special geometry.
From system value to project-specific unit
Enter dimensions. Select the build-up.
Receive a project value.
The configurator connects technical system data with drawings, glazing and a project quotation request.
