Which glazing can be used with AWS 90 BS.SI+?

The published system range is 28–58 mm. Glass size, weight, hardware and structural verification must also be checked.

Which security class is available for AWS 90 BS.SI+?

The published system status is to RC 3. A resistance class applies only to the tested overall construction including glazing, anchoring and installation.

How is the whole-window U-factor for AWS 90 BS.SI+ calculated?

It is calculated from frame and glass areas, the verified frame Uf value, glazing Ug value, glass-edge length, spacer Psi value and any mullions, transoms or special geometry.

Technical system data · reviewed 08/2026

Schüco · aluminum windows

AWS 90 BS.SI+
Highly insulated block window with concealed sash

Block System Super Insulation combines optimized thermal performance with slim sightlines and no visible sash contours. The 90 mm platform enables punched openings, ribbon windows, façade inserts and visually floating window solutions.

Configure a window Technical resources

System-specific performance data
Visible revision status
For architects and specifiers

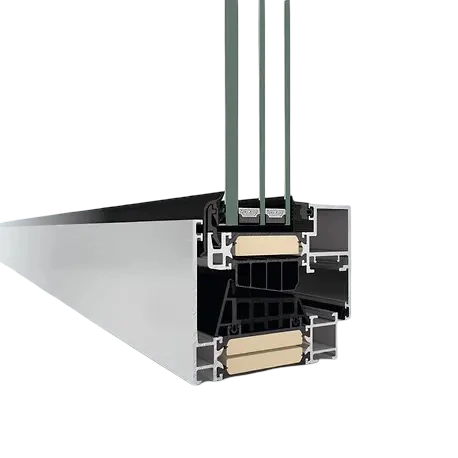

Profile section

Explore functional zones

System overview

Profile assembly

Published Uf value 0.80 W/(m²K)

Select the three markers to classify the profile assembly, glazing zone, seals and drainage.

Uf value, frame

0.8 W/(m²·K)

Max. Sash height

2.400 mm

sash weight

180 kg

Security

RC 3 up to

Data status

reviewed 08/2026

System values; achievable performance and dimensions depend on opening type, glazing, hardware, profile combination and verified unit configuration.

01 · System performance

Published data in a transparent technical structure.

Every value remains assigned to its technical category, so thermal performance, dimensions, security, comfort and glazing can be reviewed without mixed marketing claims.

Property	System value	Category
Insulation & Glazing
Uf value, frame	as low as 0.8 W/(m²·K)	Insulation & Glazing
Ug value, glazing	as low as 0.5 W/(m²·K)	Insulation & Glazing
Glass/panel thickness	28–58 mm	Insulation & Glazing
Glass/panel thickness max.	58 mm	Insulation & Glazing
Glazing construction	Triple glazing	Insulation & Glazing
Sealing planes	3	Insulation & Glazing
Comfort & Building physics
Sound insulation RwP max.	49 dB	Comfort & Building physics
Air permeability	Class 4	Comfort & Building physics
Watertightness	Class 9A	Comfort & Building physics
Wind load resistance	Class C4/B4	Comfort & Building physics
Operating forces	Class 1	Comfort & Building physics
Mechanical strength	Class 4	Comfort & Building physics
Operational durability	Class 3	Comfort & Building physics
Hardware corrosion protection class	Class 5	Comfort & Building physics
Security
Burglary resistance	to RC 3	Security
Safety glazing	Yes	Security
Fall protection	Yes	Security
Electronic monitoring	Yes	Security
Dimensions & Weights
Sash height min.–max.	540–2400 mm	Dimensions & Weights
Sash height max.	2400 mm	Dimensions & Weights
Sash width min.–max.	470–1700 mm	Dimensions & Weights
Sash width max.	1700 mm	Dimensions & Weights
Sash weight max.	180 kg	Dimensions & Weights
Overall frame depth	100 mm	Dimensions & Weights
Sash/frame profile depth	95 mm	Dimensions & Weights
Sightlines
Minimum sightline	77 mm	Sightlines
Outer-frame sightline	77 mm	Sightlines
Sash sightline	0 mm	Sightlines
Mullion sightline	107–202 mm	Sightlines
Maximum mullion sightline	202 mm	Sightlines
Meeting-stile sightline	104–104 mm	Sightlines
Maximum meeting-stile sightline	104 mm	Sightlines
Opening Types & Hardware
TipTronic	Yes	Opening Types & Hardware
TipTronic, inward-opening	tilt-and-turn, side-hung, tilt-only, fanlight	Opening Types & Hardware
Manual, inward-opening	tilt-and-turn, side-hung, tilt-only, double-sash configurations, parallel slide-and-tilt, fanlight and tilt-before-turn	Opening Types & Hardware
Opening angle	180°	Opening Types & Hardware
Concealed hardware system	Yes	Opening Types & Hardware
Fanlight configuration	No	Opening Types & Hardware
Applications & Equipment
Applications	Exterior use, residential and commercial construction	Applications & Equipment
Accessible operating forces under DIN 18040	Yes	Applications & Equipment
Profile shear bond	Yes	Applications & Equipment
Schüco sun protection possible	Yes	Applications & Equipment
Finishes & Certification
Finishes	Powder coating, anodizing or wet paint	Finishes & Certification
CE marking	Yes	Finishes & Certification
Certificate	Cradle to Cradle Silver	Finishes & Certification
Color-independent performance	Yes	Finishes & Certification
Planning benefits
Thermal insulation	Highly insulated construction that can support Passive House-level performance, subject to configuration.	Planning benefits
Hidden contours	Operable sashes and fixed glazing can appear identical from the outside – without visible glazing beads.	Planning benefits
Profile diversity	Extensive range with mullion profiles, meeting-stile sashes and glazing bars.	Planning benefits
AvanTec SimplySmart	The concealed hardware system allows large sash weights and an opening angle of 180°.	Planning benefits
TipTronic SimplySmart	Sash profiles for the mechatronic hardware generation can be used optionally.	Planning benefits
Facade integration	Insert outer frames with adapter seal compensate for glass thicknesses when integrated into Schüco mullion-transom curtain walls.	Planning benefits

Values are taken from the system-specific data already maintained on this website. The binding result is produced from the actual unit configuration.

02 · Profile construction

From profile section to verified project planning.

Profiles, glazing, seals and hardware are treated as one system. This separates published values from the items that require project-specific verification.

System platform

100 mm frame depth or profile-dependent construction.

Planning: frame, sash, mullion and meeting stile

Glazing

Published range: 28–58 mm.

Planning: build-up, weight, size and spacer

Seals and drainage

Air: Class 4 · Water: Class 9A.

Planning: exposure and drainage

Hardware and security

Burglary resistance: to RC 3.

Planning: opening type, weight and tested assembly

03 · Interactive tool

Estimate the whole-window U-factor with visible inputs and formula.

The calculator uses the published Uf input for the selected system, the glazing Ug value, the unit geometry and the spacer Ψ value.

System and geometry Window system Width mm Height mm Visible frame width mm

Glazing and spacer Glazing Ug value Spacer

Preliminary whole-window U-factorSchüco AWS 90 BS.SI+

–W/(m²K)

Calculating

Window area A_w: –
Frame area A_f: –
Glass area A_g: –
Glass-edge length l_g: –

Formula and calculation

Uw = (Af × Uf + Ag × Ug + lg × Ψg) ÷ Aw

Preliminary planning value. Mullions, transoms, divided lites, special geometry, actual profile combinations and applicable project standards must be included in the binding calculation.

04 · Planning resources

CAD, sections and specifications in one logical area.

Existing resources link directly to the relevant content. CAD details that are not yet public can be requested with the selected system already identified.

PDF

System data

Technical data overview

All currently stored performance values

Current data status · 08/2026

→

PDF

Downloads

Product brochures and documents

Available manufacturer resources

Website document library

→

CAD

DWG / DXF

Request a CAD section

Coordinate the appropriate configuration and revision

System preselected

→

TXT

Specification

Request specification text

System-specific text with project parameters

For architects and specifiers

→

05 · Planning knowledge

Answers organized around real specification questions.

Frequently asked questions remain readable on the page and are also provided as structured FAQ data.

Which values are binding for AWS 90 BS.SI+?

Only the values of the specifically engineered and verified unit configuration are binding, including profiles, size, opening type, glazing, hardware, anchoring and installation interface.

Which glazing can be used?

The published system range is 28–58 mm. A specific glass build-up also depends on size, weight, sash dimensions, hardware and structural verification.

Is to RC 3 automatically included?

No. A resistance class only applies to the tested assembly of profiles, hardware, glazing, anchoring and installation. The required class must be specified for the project.

How is the binding whole-window U-factor determined?

From the frame share, Uf value of the actual profile combination, glazing Ug value, glass-edge length, spacer Ψ value and, where applicable, mullions, transoms and special geometry.

From system value to project-specific unit

Enter dimensions. Select the build-up.
Receive a project value.

The configurator connects technical system data with drawings, glazing and a project quotation request.

Configure AWS 90 BS.SI+ Request planning support
